Klemflanger

Flange coupling Ø30mm 4'' 50/78

Varenummer: 3043
339,26 € (vejledende pris)
Construction Value
Konstrueret materiale Pulverlakering

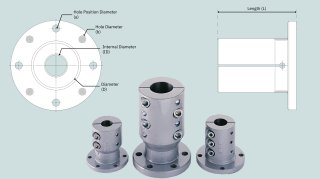

Dimensions Value
(L) Længde 100mm / 3.9in
(D) Diameter 50mm / 2in
(ID) Indv diameter 30mm / 1.2in
(a) 78mm / 3.1in
(b) 10.5mm / 0.4in
*Compatible to fit with shafts with a diameter of 30mm / 1.2in
Flanges and flexible couplings Value
Gear box model Yanmar (Kanzaki): KBW 10, Yanmar (Kanzaki): KM2A, Yanmar (Kanzaki): KM2P, Yanmar (Kanzaki): KM35A, Yanmar (Kanzaki): KM35P, Yanmar (Kanzaki): KM3A
Ideal vessel integration Value
Typical vessel class Erhvervsfartøj, Motorbåd, Sejlbåd
