Aktuator til Vector Fins™

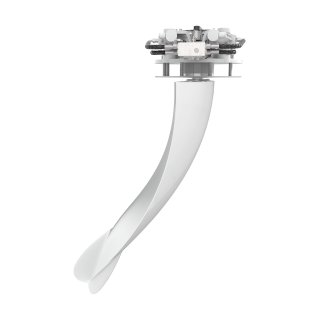

Actuator kit for Vector Fins™ VF1050
-
ANY SPEED
Vector Fins™ er det eneste top-præstations stabilisator system til både cruising og opankring. Finnernes konkave form opretholder multilaterale styrke retning, forbedre den stationære position, når et skib ligger for anker. Det unikke design viser sig tydeligt under cruising og under acceleration. Sejltests har bevist at Vector Fins™ er op til 50% mere effective under ankring og under sejlads vil de reducere de ubehagelige rulle bevægelser af et fartøj med op til 95% under cruising.
-
360° INSTALLATION
Designet til at passe i små og udfordrende installations områder, Vector Fins™ unikke kegle aksel design, tillader dig at udnytte pladsen ombord, til installationen af aktuatorer i enhver retning og montere finnerne i den ønskede position.
-
S-LINK™
S-Link™ er et CAN-baseret kontrol system som bruges til kommunikation mellem Sleipner produkter installeret i et fartøj.
- Kompakt og vandtæt stik
- Indtastet og farvekodet konnektorer for at sikre korrekt og nem installation
- Forskellige kabel længder, forlængere og T-konnektore gør systemet fleksibelt og nemt at installere
-
HYDRAULIC
Drevet af hydraulisk tryk.
Varenummer: SPS66B
The height inside a boat is often a critical measurement when installing stabilizing systems in modern boats.
Sleipner's SPS66 actuators for Vector fins™ are up to 75 percent more compact than others, constructed for easy installation and minimal noise reproduction.
Silent and Reliable Construction
Technical design benefits
- Precision machining and assembly secures a long lifetime and durability.
- No additional center lock. This is automatic in the standard hydraulic system – very safe due to the hydraulics having extreme safety limits – actually stronger than the shaft.
- Dual cylinders provide a balanced load, unlike single-cylinder solutions and less bearing load, allowing for a more compact shaft bearing assembly.
- Purpose-designed dual shaft sealing - superior to standard Simmer Ring lip seals.
- Internal hydraulic connections on actuators are pre-fitted. The installer only fits non-moving hoses/pipes - Easier and safer.
- No complex adjustments are required to set up a controller with lots of factors. These are set automatically on the first sea-trial of the boat.
- Bearing the lifetime lubricated SKF high-load bearings transferring the cylinder forces to the fins, have a built-in tightening system. This means that when you on most brands often need to change all bearings to remove a small noise from minimal bearing wear, you can instead tighten them again and keep going—saving both cost and hassle to get the bearings changed.
- Vector fins are easily and quickly installed and removed from the outside for best convenience, such as transport or other haul-out situations.
- Defined shaft-shear point in cDefined shaft-shear point in case of the fins accidentally hitting something.
- All wet parts are made of stainless steel.

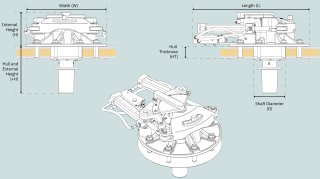

Size comparison
Size from side view compared to other brand actuators for similar fin size:
Egenskaber
ANY SPEED
Vector Fins™ er det eneste top-præstations stabilisator system til både cruising og opankring. Finnernes konkave form opretholder multilaterale styrke retning, forbedre den stationære position, når et skib ligger for anker. Det unikke design viser sig tydeligt under cruising og under acceleration. Sejltests har bevist at Vector Fins™ er op til 50% mere effective under ankring og under sejlads vil de reducere de ubehagelige rulle bevægelser af et fartøj med op til 95% under cruising.
360° INSTALLATION
Designet til at passe i små og udfordrende installations områder, Vector Fins™ unikke kegle aksel design, tillader dig at udnytte pladsen ombord, til installationen af aktuatorer i enhver retning og montere finnerne i den ønskede position.
S-LINK™
S-Link™ er et CAN-baseret kontrol system som bruges til kommunikation mellem Sleipner produkter installeret i et fartøj.
- Kompakt og vandtæt stik
- Indtastet og farvekodet konnektorer for at sikre korrekt og nem installation
- Forskellige kabel længder, forlængere og T-konnektore gør systemet fleksibelt og nemt at installere
HYDRAULIC
Drevet af hydraulisk tryk.
-
