Cylindre
Hydraulic cylinder SP155
Varenummer: 71140

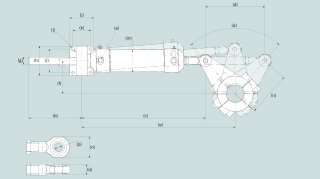

| Dimensions | Value |
|---|---|
| (b) | 179mm / 7.05in |
| (c) | 392mm / 15.43in |
| (d) | 200mm / 7.87in |
| (g) | 20mm / 0.79in |
| (h) | 80mm / 3.15in |
| (i) | 64mm / 2.52in |
| (j) | 60mm / 2.36in |
| (k) | 44mm / 1.73in |
| (l) | 8.5mm / 0.33in |
| (m) | 57mm / 2.24in |
| (o) | 36mm / 1.42in |
| (p) | 14mm / 0.55in |
| (q) | 19mm / 0.75in |
| α | 84 |
| Extra custom dimensions | Value |
|---|---|
| e1 (with 150mm tiller arm) | 488.5 |
| n2 (with 180mm tiller arm) | 180 |
| f1 (with 150mm tiller arm) | 111.5 |
| n1 (with 150mm tiller arm) | 150 |
| e2 (with 180mm tiller arm) | 491 |
| f2 (with 180mm tiller arm) | 147.5 |
| Hydraulisk | Value |
|---|---|
| Cross over valve | Nej |
| Shock valve | Nej |
| Hydraulic steering | Value |
|---|---|
| Max rudder torque (bar) with 180mm tiller arm | 155 |
| Recommended hose diameter (inside) | 3/8" |
| Max rudder torque (bar) with 150mm tiller arm | 130 |
| Working pressure (bar) | 50 |
| Cylinder volume (ccm) | 345 |
| Oil | Value |
|---|---|
| Oil type specifications | ISO-VG-15, DIN 51524-3 HVLP |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Motorbåd, Sejlbåd |
| Compliance | Value |
|---|---|
| DNV type approved | Nej |
| Product weight | Value |
|---|---|
| Net weight | 5.8239kg / 12.84lbs |
-
