Cylindre
Hydraulic cylinder SP40
Varenummer: 71030

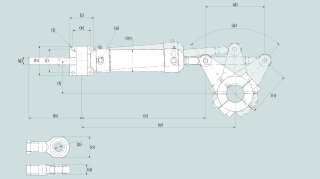

| Dimensions | Value |
|---|---|
| (a) | 1/4" |
| (b) | 151.5mm / 5.96in |
| (c) | 338.5mm / 13.33in |
| (d) | "175" |
| (g) | 16mm / 0.63in |
| (h) | 60mm / 2.36in |
| (i) | 42mm / 1.65in |
| (j) | 50mm / 1.97in |
| (k) | 35mm / 1.38in |
| (l) | 6.5mm / 0.26in |
| (m) | 38mm / 1.50in |
| (o) | 32mm / 1.26in |
| (p) | 12mm / 0.47in |
| (q) | 16mm / 0.63in |
| α | 70 |
| Extra custom dimensions | Value |
|---|---|
| f2 (with 180mm tiller arm) | 172 |
| e1 (with 150mm tiller arm) | 424.5 |
| n1 (with 150mm tiller arm) | 150 |
| n2 (with 180mm tiller arm) | 180 |
| e2 (with 180mm tiller arm) | 428.5 |
| f1 (with 150mm tiller arm) | 122.9 |
| Hydraulisk | Value |
|---|---|
| Shock valve | Nej |
| Cross over valve | Nej |
| Hydraulic steering | Value |
|---|---|
| Cylinder volume (ccm) | 110 |
| Max rudder torque (bar) with 180mm tiller arm | 55 |
| Max rudder torque (bar) with 150mm tiller arm | 45 |
| Working pressure (bar) | 50 |
| Recommended hose diameter (inside) | 3/8" |
| Oil | Value |
|---|---|
| Oil type specifications | ISO-VG-15, DIN 51524-3 HVLP |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Motorbåd, Sejlbåd |
| Compliance | Value |
|---|---|
| DNV type approved | Nej |
-
