Ratpumper

Helm pump, hydraulic steering 35cm³ flush mount

Varenummer: 72068
1.014,76 € (vejledende pris)

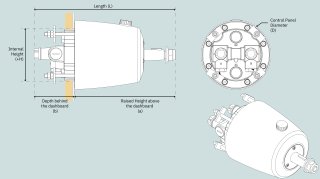

Dimensions Value
(+H) Ekstra højde 90mm / 3.5in
(L) Længde 232mm / 9.1in
(D) Diameter 120mm / 4.7in
(a) 175mm / 6.9in
(b) 50mm / 2in
Materiale Value
Product colour finish Sort
Hydraulisk Value
Non-return valve Ja
Hydraulic steering Value
Rudder rotations with cylinder 71060 3.6
Pump displacement (ccm) 35
Port dimensions BSP A/B 1/4”
Rudder rotations with cylinder 71030 3.1
Rudder rotations with cylinder 71090 6,1 Recommended
Helm pump type flush mount
Oil Value
Oil type specifications ISO VG15/DIN 51524-3 HVLP
Ideal vessel integration Value
Typical vessel class Erhvervsfartøj, Motorbåd, Sejlbåd
Product weight Value
Net weight 3.529kg / 7.781lbs
