Ø250mm TC 24V
Varenummer: 13 0650
0,00 €
(vejledende pris)
-
DNV AiP Thruster retract composite housing SR Ø250 and Ø300
Conformity CertificateEngelskpdf
Retract mechanical
SM104776B
13 0650
20.05.2026
Guide til at navigere i reservedele
Nedenfor ser du det øverste niveau af reservedele til rådighed for dig. Hvis du ønsker en komponent i den præsenterede enhed, skal du klikke på navneetiketten under billedet for at komme til en detaljeret reservedelsliste for den enhed. Hvis der ikke er yderligere reservedele til rådighed, betyder det, at den pågældende enhed skal købes samlet på grund af service- eller installationskrav.
+
-
⇔
PHOTO NOT AVAILABLE
2
Cable actuator
Varenummer: 150050
Antal: 2
PHOTO NOT AVAILABLE
3
Cylinder head cap screw
Antal: 4
M4x12 Unbraco
PHOTO NOT AVAILABLE
5
Sensor cable SR
Varenummer: 150055
Antal: 1
PHOTO NOT AVAILABLE
7
Hex lock nut
Antal: 1
DIN 985 - M4 x 0,7 A4
PHOTO NOT AVAILABLE
8
Hex socket set screw flat point
Antal: 1
DIN 913 - M4 x 20 A4
PHOTO NOT AVAILABLE
9
Hex socket flat countersunk head screw
Antal: 2
DIN 7991 - M4x30 A4
Kits
-
SM143716 20 1180 A
-
SM170663 SM170663
-
SM175313 SM175313
-

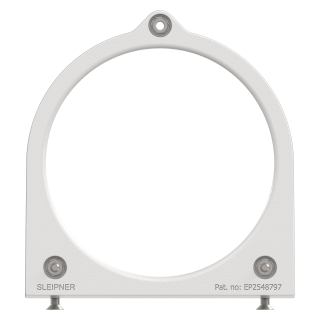

Retract ring support kit 250mmSM900585 6 2143-OBS
-
SM901300B 10 2076
-
SM901301 10 2077
-
SM901479 140100

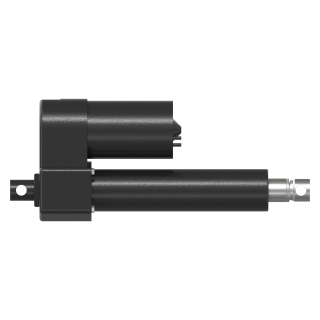

1 Actuator kit 24 v Retract 185-250mm
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
Locking bolt
Varenummer: 140003
Antal: 1
PHOTO NOT AVAILABLE
3
Split pin
Antal: 2
ISO 1234 - 3,2 x 20 A4
PHOTO NOT AVAILABLE
5
Flat washer without chamfer
Antal: 1
DIN 125 - A 13 A4
PHOTO NOT AVAILABLE
6
Grommet kit
Varenummer: SM167587
Antal: 1
2 Adapter water proof SRV
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Adaptor for seals SRV sensor
Varenummer: SM-131070
Antal: 1
PHOTO NOT AVAILABLE
2
O-ring Ø14x3mm
Antal: 1
--
PHOTO NOT AVAILABLE
3
Composite shaft for SRV sensor
Varenummer: SM-131071
Antal: 1
PHOTO NOT AVAILABLE
4
O-ring Ø18x3mm
Antal: 1
--
PHOTO NOT AVAILABLE
6
DIN 125 - A 4,3
Antal: 2
Flat Washer
PHOTO NOT AVAILABLE
7
ISO 7045 - M4 x 40
Antal: 2
Screw
PHOTO NOT AVAILABLE
8
ISO 7045 - M4 x 55
Antal: 2
Screw

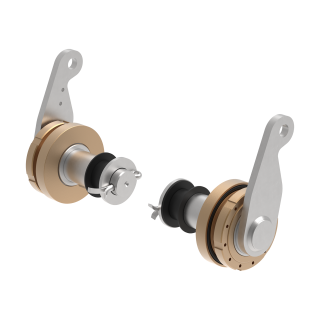

3 Shaft kit horizontal SRV130..210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Stuffing box
Varenummer: SM-123053
Antal: 2
PHOTO NOT AVAILABLE
2

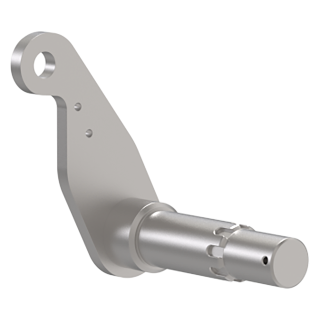

Lifting arm complete PS
Varenummer: 140027
Antal: 1
PHOTO NOT AVAILABLE
3
Lock nut
Antal: 2
M64
PHOTO NOT AVAILABLE
4
O-ring
Antal: 2
DIN 3771 - 72,62 x 3,53
PHOTO NOT AVAILABLE
5
O-ring
Antal: 2
DIN 3771 - 48,9 x 2,62
PHOTO NOT AVAILABLE
6
Thrust washer
Antal: 4
Ø48-Ø28 H=1,5
PHOTO NOT AVAILABLE
7
Flat washer without chamfer
Antal: 2
DIN 125 - A 29
PHOTO NOT AVAILABLE
8
Split pin
Antal: 1
ISO 1234 - 3,2 x 12
PHOTO NOT AVAILABLE
9
Split pin
Antal: 2
ISO 1234 - 6,3 x 44
PHOTO NOT AVAILABLE
10
Sleeve bearing
Varenummer: 140019
Antal: 2
PHOTO NOT AVAILABLE
11
Wype Ring
Varenummer: 140030
Antal: 2
PHOTO NOT AVAILABLE
12
Turn ring
Varenummer: 6 2140
Antal: 2
PHOTO NOT AVAILABLE
13
Sleeve bearing
Varenummer: 140060
Antal: 2
PHOTO NOT AVAILABLE
15
Split pin
Antal: 2
ISO 1234 - 3,2 x 20

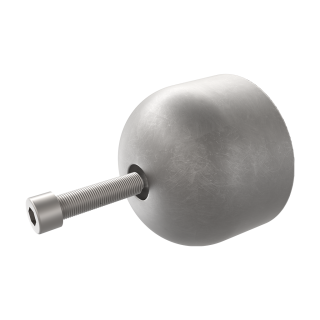

4 Anode kit, aluminium aloy (Al-Zn-In)
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Anode - aluminium
Antal: 1
--
PHOTO NOT AVAILABLE
2
Hex socket cap screw
Antal: 1
DIN 912 - M6 x 30

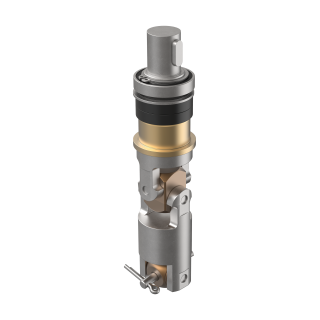

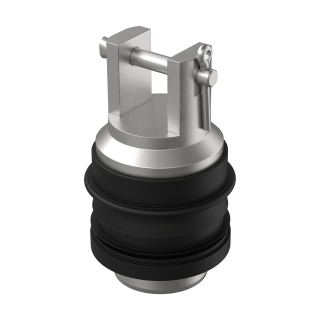

5 Retract drive shaft kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Retaining ring for shaft
Antal: 1
DIN 471 - 25 x 1,2
PHOTO NOT AVAILABLE
2
Deep groove ball bearings single row with two RS1 seals
Antal: 1
SKF 2RS1W 61805-2RS1
PHOTO NOT AVAILABLE
3
Spring Retaining Ring
Antal: 1
DIN 472 - 35 x 1,5
PHOTO NOT AVAILABLE
4
Rotary lip seal
Antal: 2
25 x 35 x 7
PHOTO NOT AVAILABLE
5
Bearing Sintered
Antal: 1
Ø25xØ32xL20
PHOTO NOT AVAILABLE
6
Parallel Key
Antal: 1
DIN 6885 - A 6 x 6 x 16
PHOTO NOT AVAILABLE
7
Flexible drive shaft
Antal: 1
250 mm
PHOTO NOT AVAILABLE
8
Locking pin
Antal: 1
Ø6 L45,5
PHOTO NOT AVAILABLE
9
Split Pin
Antal: 1
DIN EN ISO 1234 - 3,2x12

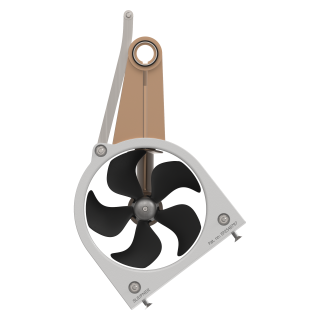

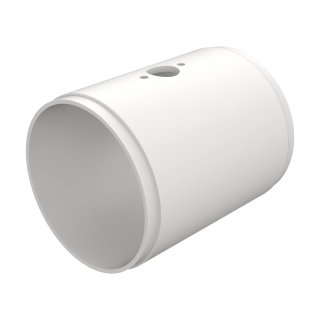

6 Tunnel kit retract Ø250mm TC, complete
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
Thrust washer
Antal: 4
Ø10 x 18 x 1mm
PHOTO NOT AVAILABLE
3
Lifting rod
Varenummer: 140007
Antal: 1
PHOTO NOT AVAILABLE
4
Hex head screws
Antal: 2
DIN 933 - M10 x 20
PHOTO NOT AVAILABLE
5
Sleeve bearing
Varenummer: 140024
Antal: 2
PHOTO NOT AVAILABLE
6
Split pin
Antal: 2
ISO 1234 - 3,2 x 20
PHOTO NOT AVAILABLE
7
Split pin
Antal: 2
ISO 1234 - 6,3 x 44
PHOTO NOT AVAILABLE
8
Wype Ring
Varenummer: 140030
Antal: 2
PHOTO NOT AVAILABLE
9
O-ring
Antal: 2
DIN 3771 - 48,9 x 2,62
PHOTO NOT AVAILABLE
10
Turn ring
Varenummer: 6 2140
Antal: 2
PHOTO NOT AVAILABLE
14
Tunnel bracket
Varenummer: 140010
Antal: 1
Kits
-
SM143716 20 1180 A
-
SM900585A 6 2143

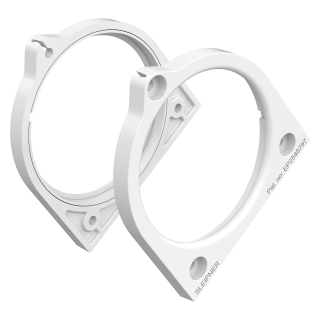

7 Retract Twist ring support kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
3
DIN 934 - M10
Antal: 8
Hex nut
PHOTO NOT AVAILABLE
4
DIN 7991 - M10x70 A4
Antal: 4
Hex socket flat countersunk head screw
PHOTO NOT AVAILABLE
5
Sliding band
Varenummer: 140151
Antal: 2
-1.png)
PHOTO NOT AVAILABLE
7
DIN 125 - A 10,5
Antal: 6
Flat washer without chamfer
PHOTO NOT AVAILABLE
8
DIN 985 - M10 x 1,5
Antal: 6
Hex lock nut
PHOTO NOT AVAILABLE
9
ISO 1234 - 3,2 x 20
Antal: 4
Split pin
8 Gearleg SRV170/210 replacement kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Mechanical sealing Ø35
Antal: 1
--
PHOTO NOT AVAILABLE
2
Bushing for drive pins
Antal: 1
--
PHOTO NOT AVAILABLE
3
DIN 3771 - 43,7 x 3,55 - NBR
Antal: 1
O-ring
Kits
-
SM143716 20 1180 A
9 Joint lower kit SRV130/170/210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Split pin
Antal: 1
ISO 1234 - 3,2 x 12
PHOTO NOT AVAILABLE
2
Locking pin
Antal: 1
Ø6 L45,5
PHOTO NOT AVAILABLE
3
Drive shaft lower link
Antal: 1
PHOTO NOT AVAILABLE
4
Mechanical sealing Ø35
Antal: 1
PHOTO NOT AVAILABLE
5
Bushing for drive pins
Antal: 1

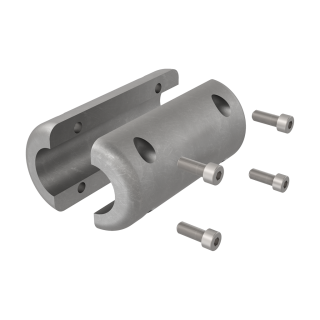

10 Anode rod for SRV thrusters
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
DIN 934 - M4
Antal: 4
Hex nut
PHOTO NOT AVAILABLE
2
Anode SRV
Antal: 1
Anode SRV
PHOTO NOT AVAILABLE
3
Anode SRV
Antal: 1
Anode SRV
PHOTO NOT AVAILABLE
4
DIN 912 - M4 x 12
Antal: 4
Cylinder head cap screw
11 Gearleg SE170/210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
Kits
-
SM143716 20 1180 A
12 Gearleg SE170/210 w/out propeller
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Shaft seal
Antal: 1
DIN 3760 - AS - 22 x 40 x 7 - NBR - Carbon Steel
PHOTO NOT AVAILABLE
2
Bolt
Antal: 2
DIN 912 - M10 x 50
PHOTO NOT AVAILABLE
3
Lock washer
Antal: 2
DIN 128 - A10
PHOTO NOT AVAILABLE
4
Washer
Antal: 2
DIN 125 - A 10,5
PHOTO NOT AVAILABLE
6
Drive pin
Antal: 2
ISO 8734 - 8 x 37
PHOTO NOT AVAILABLE
7
Washer for propeller
Antal: 2
DIN 125 - A 17
PHOTO NOT AVAILABLE
8
Nut for propeller
Antal: 2
DIN 985 - M16x2
Kits
-
SM143716 20 1180 A
Ansvarsfraskrivelse
Sleipners garantier gælder kun, hvis der anvendes originale reservedele. Installatøren har eneansvaret for monteringen af reservedelene. Monter ikke reservedele, medmindre du har fuld viden og kompetence. Hvis reservedelen er monteret forkert, er Sleipner Group ikke ansvarlig for eventuelle skader, der måtte opstå.
Oplysningerne i dokumentet var korrekte på tidspunktet for offentliggørelsen. Sleipner Group påtager sig dog ikke ansvar for eventuelle fejl eller udeladelser. Løbende produktforbedringer kan ændre produktspecifikationerne uden varsel. Sleipner Group kan derfor ikke tage ansvar for eventuelle forskelle mellem produkt og dokument.
-
