Retract mechanical SRH240
Ø250mm TC 24V 240kg
Varenummer: 13 0654
| Product weight | Value |
|---|---|
| Net weight | 64kg / 141.10lbs |
| Sparepart for | Value |
|---|---|
| Main products > Thrusters > Hydraulic > SRH | SRHP240-G11-24V SRHP240-G14-24V SRHP240-G16-24V |
-
DNV AiP Thruster retract composite housing SR Ø250 and Ø300
Conformity CertificateEngelskpdf -
DNV Type Approval Tunnel thruster
Product Specification Sheets, Conformity CertificateEngelskpdf
Retract mechanical SRH240
Guide til at navigere i reservedele
Nedenfor ser du det øverste niveau af reservedele til rådighed for dig. Hvis du ønsker en komponent i den præsenterede enhed, skal du klikke på navneetiketten under billedet for at komme til en detaljeret reservedelsliste for den enhed. Hvis der ikke er yderligere reservedele til rådighed, betyder det, at den pågældende enhed skal købes samlet på grund af service- eller installationskrav.
Grommet kit
Kits
-
SM143716 20 1180 A
-
Actuator kit 24 v Retract 185-250mmSM167585 SM167585
-
Grommet kit Retract 185-250mmSM167587 SM167587
-
SM170671 SM170671
-
Retract ring support kit 250mmSM900585 6 2143-OBS
-
Seal kit hyd motor 6-23ccm Parker PGM511, CombiSM900800 72101
-
SM906006 140629

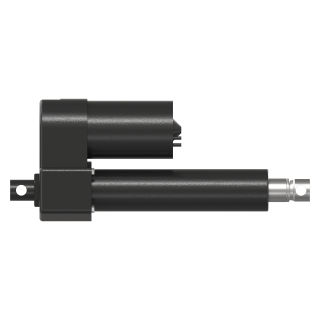

1 Actuator kit 24 v Retract 185-250mm
Locking bolt
Split pin
Flat washer without chamfer
Grommet kit

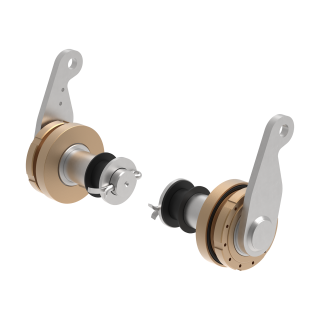

2 Shaft kit horizontal SRV130..210
Stuffing box

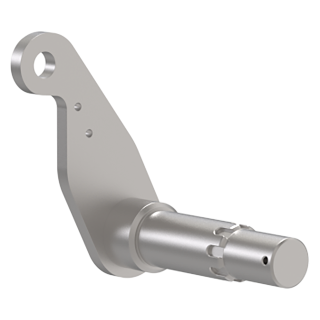

Lifting arm complete PS
Lock nut
O-ring
O-ring
Thrust washer
Flat washer without chamfer
Split pin
Split pin
Sleeve bearing
Wype Ring
Turn ring
Sleeve bearing
Split pin

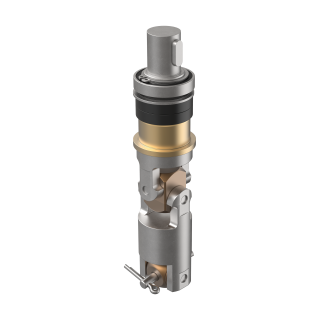

3 Retract drive shaft kit
Retaining ring for shaft
Deep groove ball bearings single row with two RS1 seals
Spring Retaining Ring
Rotary lip seal
Bearing Sintered
Parallel Key
Flexible drive shaft
Locking pin
Split Pin

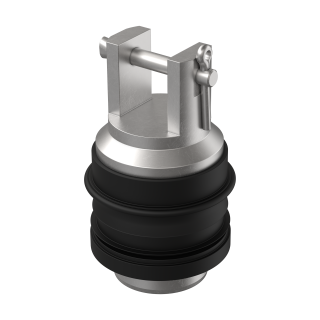

4 Joint lower kit SRV130/170/210
Split pin
Locking pin
Drive shaft lower link
Mechanical sealing Ø35
Bushing for drive pins
5 Gearleg SH240 w/out propeller
DIN 912 - M10 x 50
DIN 127 - A 10
DIN 125 - A 10,5
Ø8 x 37mm
DIN 985 - M16x2
DIN 125 - A 17
Bolt w/copper gasket
Kits
-
SM143716 20 1180 A

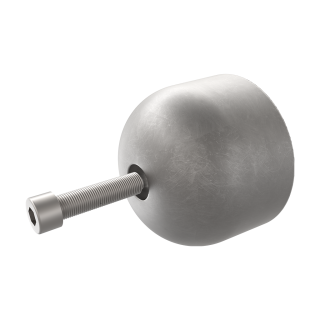

6 Anode kit, aluminium aloy (Al-Zn-In)
Anode - aluminium
Hex socket cap screw
7 Retract ring support kit 250mm
DIN 934 - M10
DIN 7991 - M10 x 70 A4
Sliding band
_3@72dpi.png)
DIN 125 - A 10,5
DIN 985 - M10 x 1,5
ISO 1234 - 3,2 x 20
Kits
-
Anode rod for SRV thrusters (pkg of 10)SP906006PK10

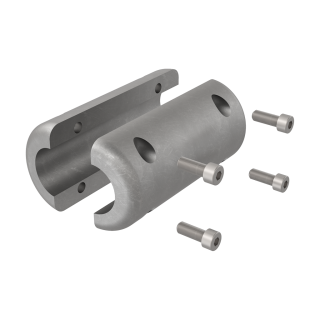

8 Anode rod for SRV thrusters
DIN 934 - M4
Anode SRV
Anode SRV
DIN 912 - M4 x 12
Ansvarsfraskrivelse
Sleipners garantier gælder kun, hvis der anvendes originale reservedele. Installatøren har eneansvaret for monteringen af reservedelene. Monter ikke reservedele, medmindre du har fuld viden og kompetence. Hvis reservedelen er monteret forkert, er Sleipner Group ikke ansvarlig for eventuelle skader, der måtte opstå.
Oplysningerne i dokumentet var korrekte på tidspunktet for offentliggørelsen. Sleipner Group påtager sig dog ikke ansvar for eventuelle fejl eller udeladelser. Løbende produktforbedringer kan ændre produktspecifikationerne uden varsel. Sleipner Group kan derfor ikke tage ansvar for eventuelle forskelle mellem produkt og dokument.
-
